Gotoh Tune-o-matic Bridge with Studs/Bushings, Nickel

Gotoh Tune-o-matic Bridge with Studs/Bushings, Nickel

Product Overview

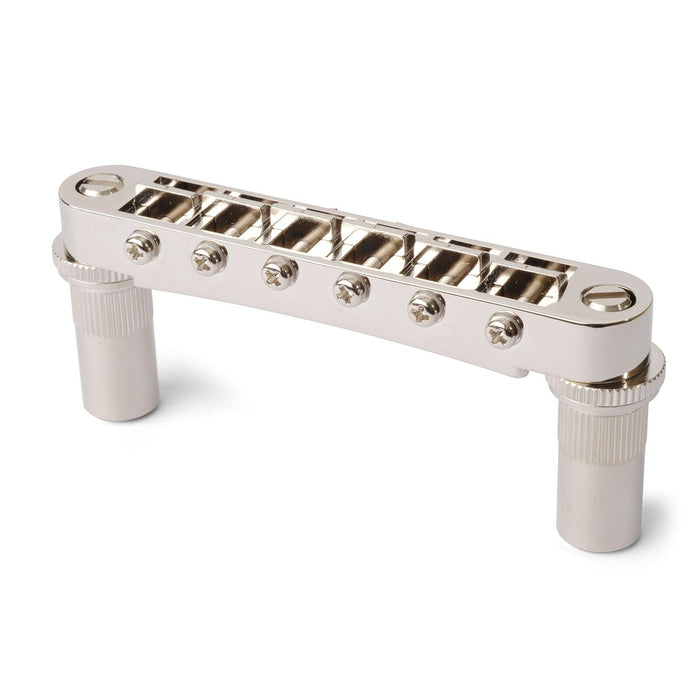

The Gotoh Tune-o-matic Bridge with Studs/Bushings is a modern version of the
Tune-o-matic bridge for solidbody guitar.The metal saddles have helpful
starter grooves to guide your slotting files. Intonation screws are retained
by mini hex nuts. Includes threaded thumbwheel studs and bushings. Use an 11mm
drill bit to install the bushings.Measurements:String spread:2-1/16"
(52.39mm)Saddle radius: 12" (304.80mm)Post spacing: 2-29/32" (73.82mm)Post
threads: M8 x 1.25About bridge & tailpiece measurements:String spread is the
distance between the centers of the outer strings on a bridge or
tailpiece.Saddle radius determines the arc formed by all the individual saddle
heights, and is similar to the measurement of a fretboard.Stud/post spacing is
the distance between the centers of the mounting posts of a bridge or 'stop'
tailpiece.

Features

• A modern version of the Tune-o-matic bridge for solidbody guitar


• The metal saddles have helpful starter grooves to guide your slotting files


• Intonation screws are retained by mini hex nuts


• Includes threaded thumbwheel studs and bushings


• String spread is 2-1/16", and post spacing is 2-29/32"; post threads are M8 x 1.25

Details

• Package Dimensions: ‎13.2 x 6 x 2.2 cm; 130 Grams


• Item model number: ‎#AN1511-N


• Item Weight: ‎130 g
